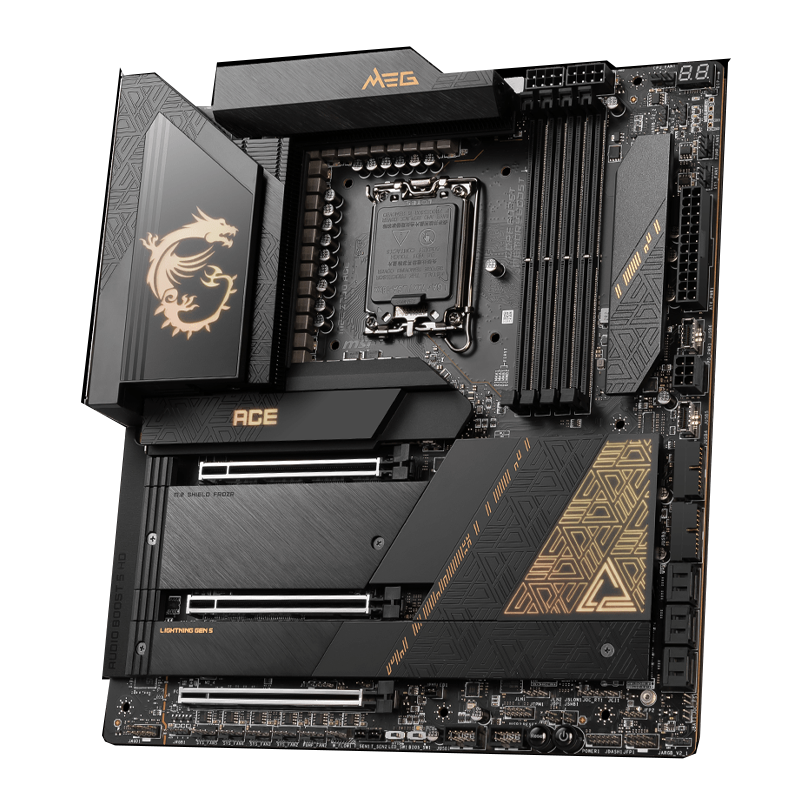

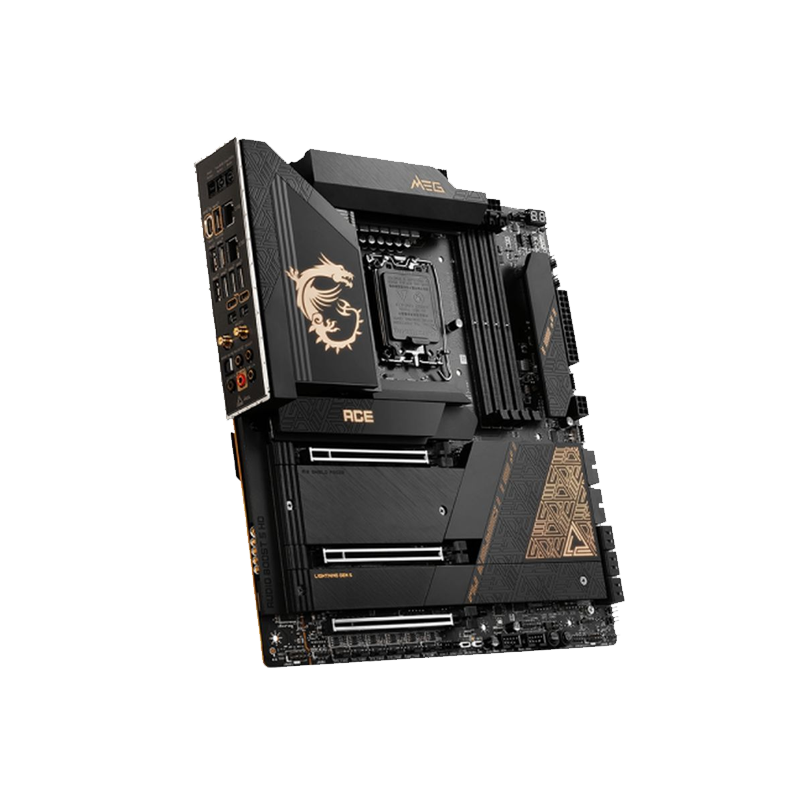

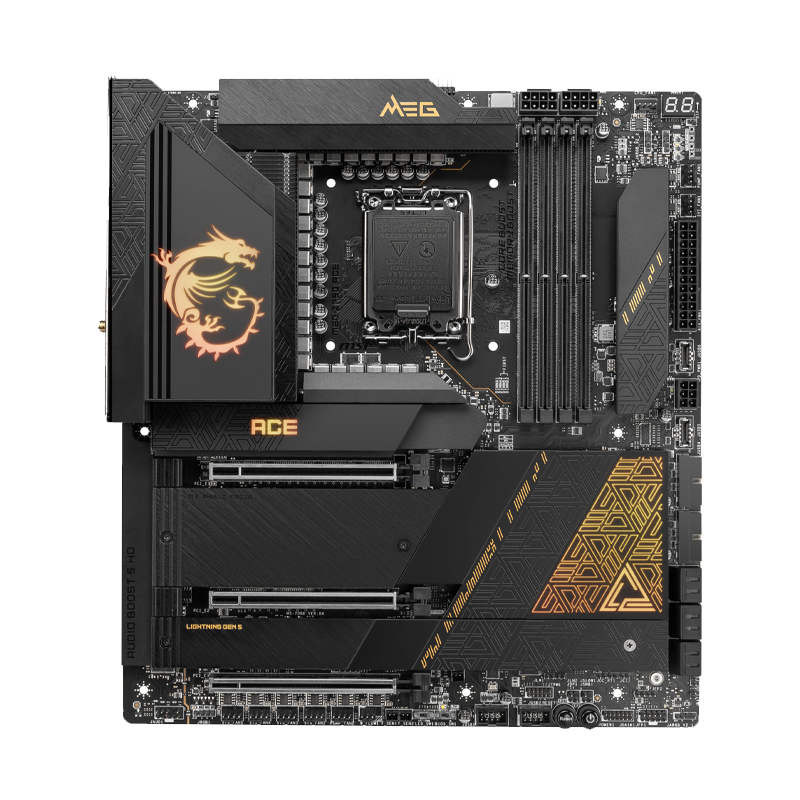

MSI MEG Z790 ACE

In Stock (100 items)
Rs63,000.00 Rs179,000.00

Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the 14th and 13th Gen Intel® Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking. Read more

Brand: MSI
Categories: Intel Motherboard
Tags:
SKU: #G6OiEN0Zus
Wishlist Added To Wishlist
Share:

Highlights

  • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
  • Supports Intel Core 14th, 13th, 12th Gen, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining
  • Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
  • Maximum 5xM.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Dual 2.5G LAN with latest Wi-Fi 6E solution: Onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience


MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard Price in Pakistan

Best Seller Ranking#33 in Intel Motherboards
Model
BrandMSI
ModelMEG Z790 ACE
Supported CPU
CPU Socket Type LGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports 1R 5600 MHz (by JEDEC & POR)
– 1DPC 1R Max speed up to 7600+ MHz
– 1DPC 2R Max speed up to 6400+ MHz
– 2DPC 1R Max speed up to 6800+ MHz
– 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Maximum Memory Supported192GB
Channel Supported Dual Channel
Memory FeatureSupports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
* Please refer to www.msi.com for more information on compatible memory
Expansion Slots
PCI Express 5.0 x162 x PCIe 5.0 x16 slots
– Supports x16/x0, x8/x8
– PCI_E1 & PCI_E2 slots (From CPU)

Supports AMD CrossFire Technology

PCI Express 4.0 x161 x PCIe 4.0 x16 slots
– supports up to PCIe 4.0 x4
– PCI_E3 slot (From Z790 Chipset)
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.22 x Key M (PCIe/SATA) + 3 x Key M (PCIe) + 1 x Key E (WiFi/BT)

5x M.2 slots (Key M)
M2_1 slot (From CPU)
– Supports up to PCIe 4.0 x4
– Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports 2260/ 2280 storage devices
M2_3 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports up to SATA 6Gb/s
– Supports 2260/ 2280 storage devices
M2_4 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2280/22110 storage devices
M2_5 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports up to SATA 6Gb/s
– Supports 2260/ 2280 storage devices

SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Additional RAID ControllerSupports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset Realtek ALC4082 Codec + ES9280AQ PRO Combo DAC/HPA
Audio Channels 7.1 Channels
Onboard LAN
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E
BluetoothBluetooth 5.2
Rear Panel Ports
Back I/O Ports1 x Clear CMOS button
1 x Flash BIOS button
1 x Smart button
2 x LAN (RJ45) jacks
7 x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset & Hub-GL3590)
1 x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
2 x Thunderbolt 4 (USB-C) ports
2 x Mini DisplayPort Inputs (for Thunderbolt 4 pass through)
2 x Wi-Fi Antenna connectors
5 x OFC audio jacks
1 x Optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB2 x USB 3.2 Gen 2 10Gbps Type-C ports (From Z790 chipset)*
2 x USB 3.2 Gen 1 5Gbps connectors (From Hub GL3523)
– Support additional 4 USB 3.2 Gen 1 5Gbps ports
2 x USB 2.0 Type-A connectors (From Hub GL850G)
– Supports additional 4 USB 2.0 ports
* To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
Other ConnectorsFan Connectors
1 x 4-pin CPU fan connector
2 x 4-pin water-pump fan connectors
5 x 4-pin system fan connectors

System Connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 3-pin Water Flow connector
1 x TPM module connector
1 x Tuning Controller connector

Button
1 x Power button
1 x Reset button

Jumpers
1 x Clear CMOS jumper
1 x Slow mode jumper
2 x Low temperature booting jumpers
1 x OC force enter BIOS jumper (Supports lower PCIe mode)

LED Features
1 x EZ LED Control switch
1 x 4-pin RGB LED connector
3 x 3-pin ARGB Gen2 LED connectors
4 x EZ Debug LED
1 x 2-Digit Debug Code LED

Physical Spec
Form FactorExtended ATX
Dimensions (W x L)12.0″ x 10.9″
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PD power connector
Windows Compatibility
Windows 11Supported
Features
FeaturesMSI Center Features
– Gaming Mode
– Smart Priority
– Game Highlights
– Mystic Light
– Ambient Devices
– Frozr AI Cooling
– User Scenario
– True Color
– Live Update
– Hardware Monitoring
– Super Charger
– Devices Speed Up

Thermal Features
– All Aluminum Design
– Stacked Fin Array
– Heat-pipe Design
– M.2 Shield Frozr
– K7 MOSFET thermal pad / Extrachoke pad
– Fan headers (CPU + PUMP + SYSTEM)

Performance
– Core Boost
– VRM Power Design (VCPU / VGT / AUX)
– Dual CPU Power(2×8 pin)
– OC Engine
– Memory Boost
– Memory Force
– Lightning Gen 5 PCI-E / M.2 Slot
– Lightning Gen 4 PCI-E / M.2 Slot
– Multi GPU Support-Crossfire
– Thunderbolt 4
– Front USB Type-C
– USB with PD
– Server Grade PCB
– 2oz Copper thickened PCB

DIY Friendly
– PCI-E Steel Armor
– Pre-installed I/O Shield
– Screwless M.2 Shield Frozr
– EZ M.2 Clips
– EZ DEBUG LED
– EZ LED Control
– Smart Button
– System Saver

Audio
– Audio Boost 5 HD
– RGB Support
– Mystic Light
– Mystic Light Extension (RGB)
– Mystic Light Extension (A-RAINBOW V2)
– Ambient Devices Support

BIOS
– Click BIOS 5
