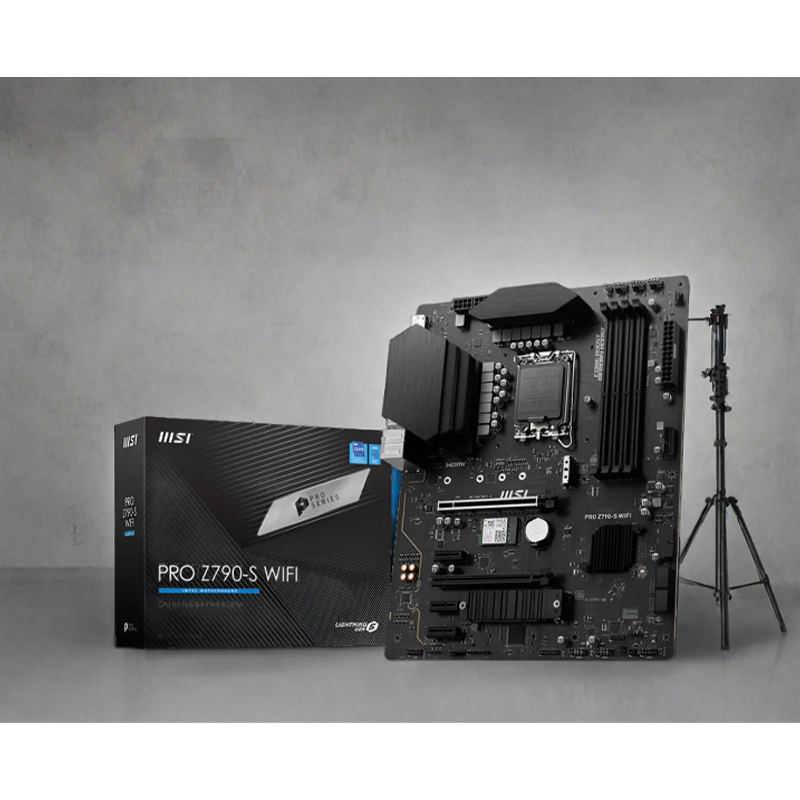

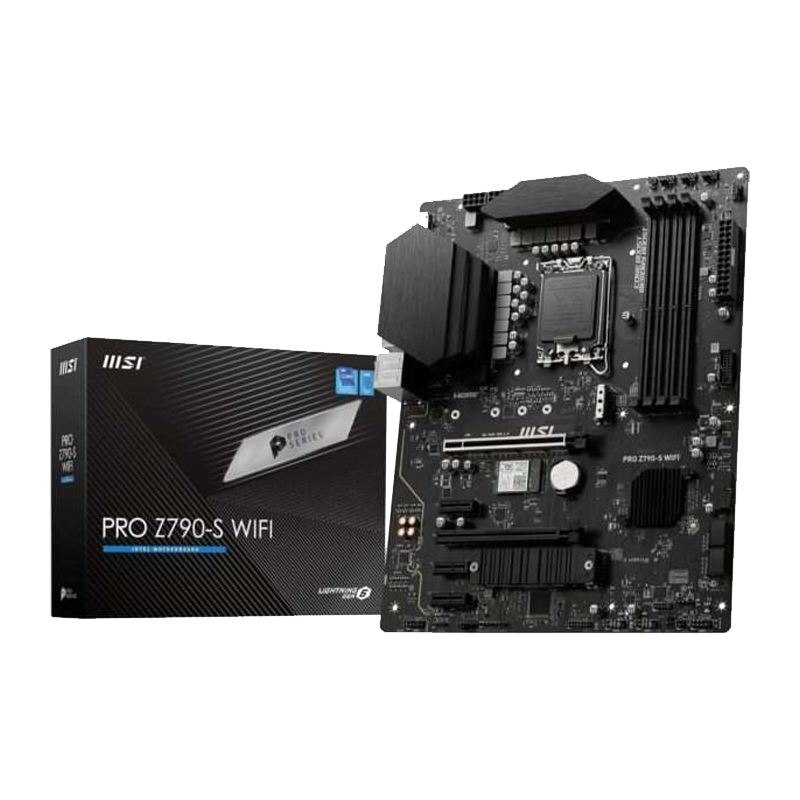

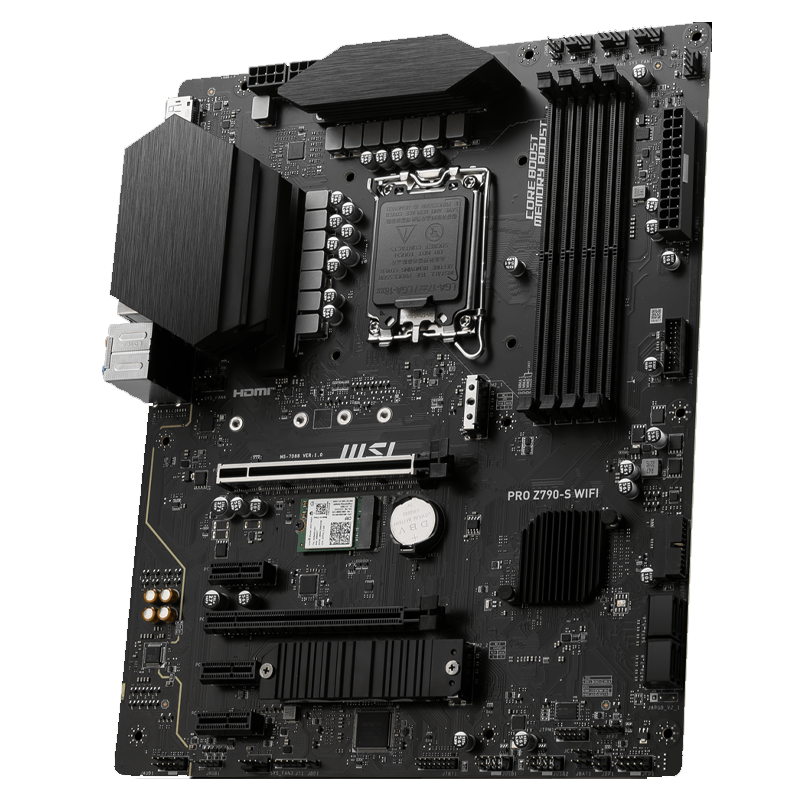

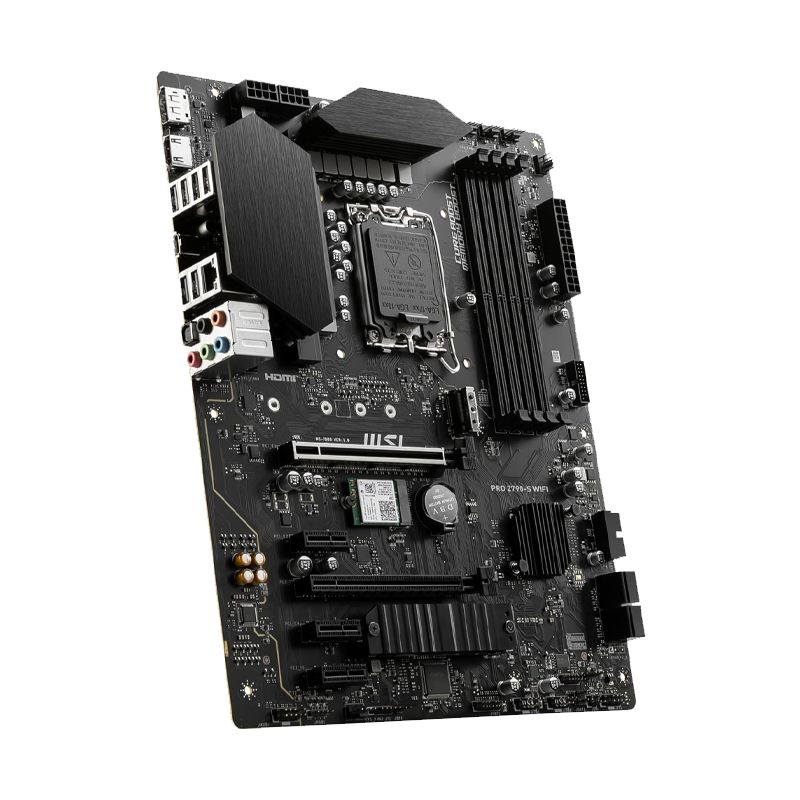

MSI PRO Z790-S WiFi ProSeries Motherboard (Supports 12th/13th/14th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5Gbps LAN, USB 3.2 Gen2, HDMI/DP, Wi-Fi 6E, Bluetooth 5.3, ATX) Read more
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
| Best Seller Ranking | #20 in Intel Motherboards |
|---|
| Brand | MSI |
|---|---|
| Model | PRO Z790-S WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: – 1DPC 1R Max speed up to 6600+ MHz – 1DPC 2R Max speed up to 6400+ MHz – 2DPC 1R Max speed up to 6000+ MHz – 2DPC 2R Max speed up to 5600+ MHz |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express 3.0 x16 | PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| PCI Express x1 | 3x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG 2.5Gbps LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA * Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2×2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks |
|---|
| Onboard USB | 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports |
|---|---|
| Other Connectors | 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x RGB LED connector (JRGB) 1x TPM pin header (Support TPM 2.0) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Windows 11 | Supported |
|---|
| Features | Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Wi-Fi 6E The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. Lightning USB 20G Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. 2.5G Network Solution Featuring premium 2.5G LAN to deliver better network experience. Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Core Boost With premium layout and fully digital power design to support more cores and provide better performance. |
|---|
